Tube Deburring Tools

Inside, Outside & End Deburring Solutions for All Tubing Sizes

Find a Distributor
Jump to: Inside Deburring Outside Deburring End Deburring Chamfering Mills Forming Cutters

Complete Tube Finishing Solutions

Severance tube deburring tools handle inside, outside, and end deburring for tubing of all sizes and materials.

Our tube tools are designed for use in drill presses, lathes, and dedicated tube finishing equipment. Available in HSS and Carbide with various cutting angles to match your application requirements.

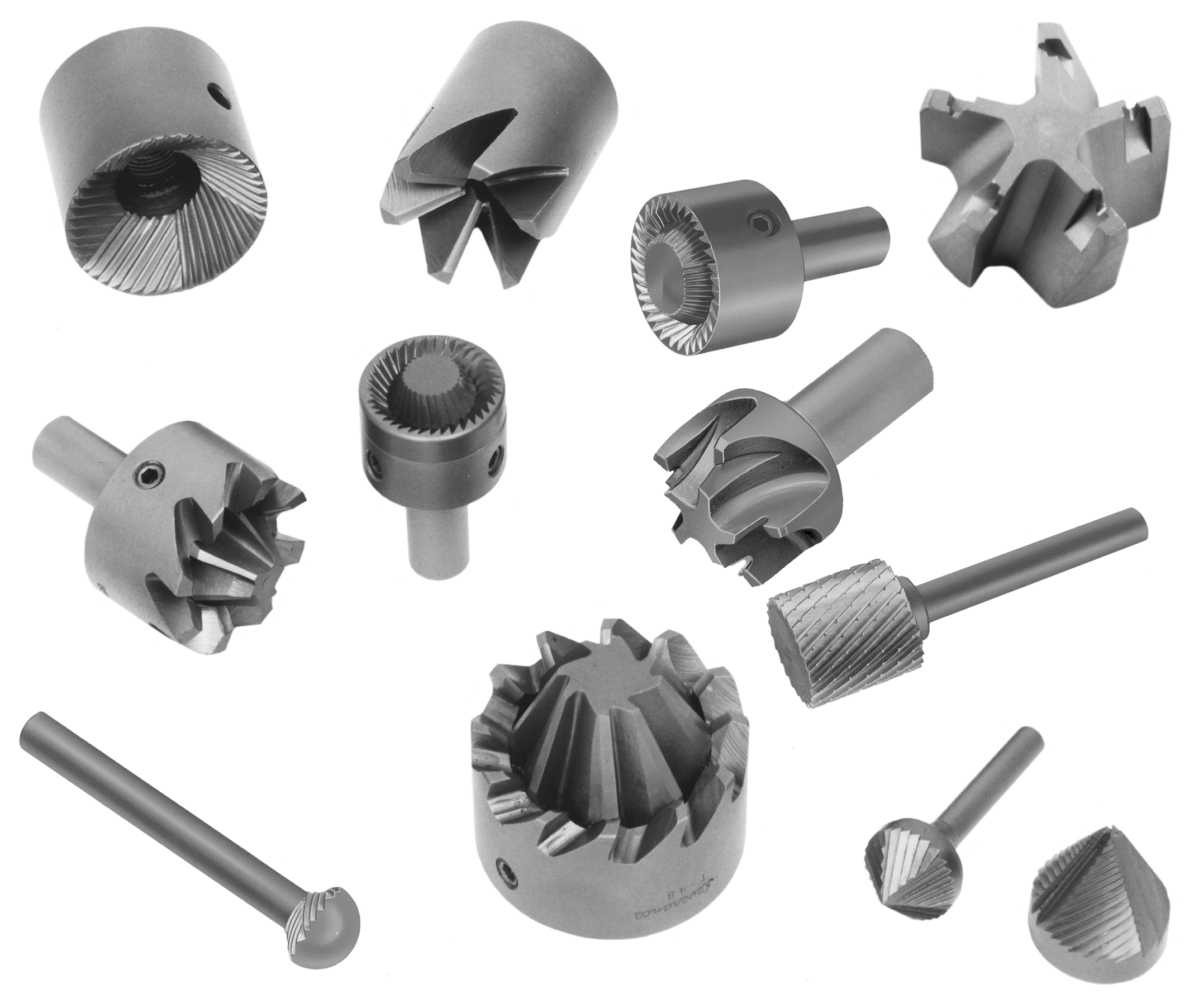

Severance Tube Deburring Tools Collection
Available Options
  • Angles: 30°, 45°, 60°
  • Materials: HSS, Carbide
  • Tube Sizes: 1/8" to 6" O.D.
  • Adjustable: For wall thickness

Inside Deburring Cutters

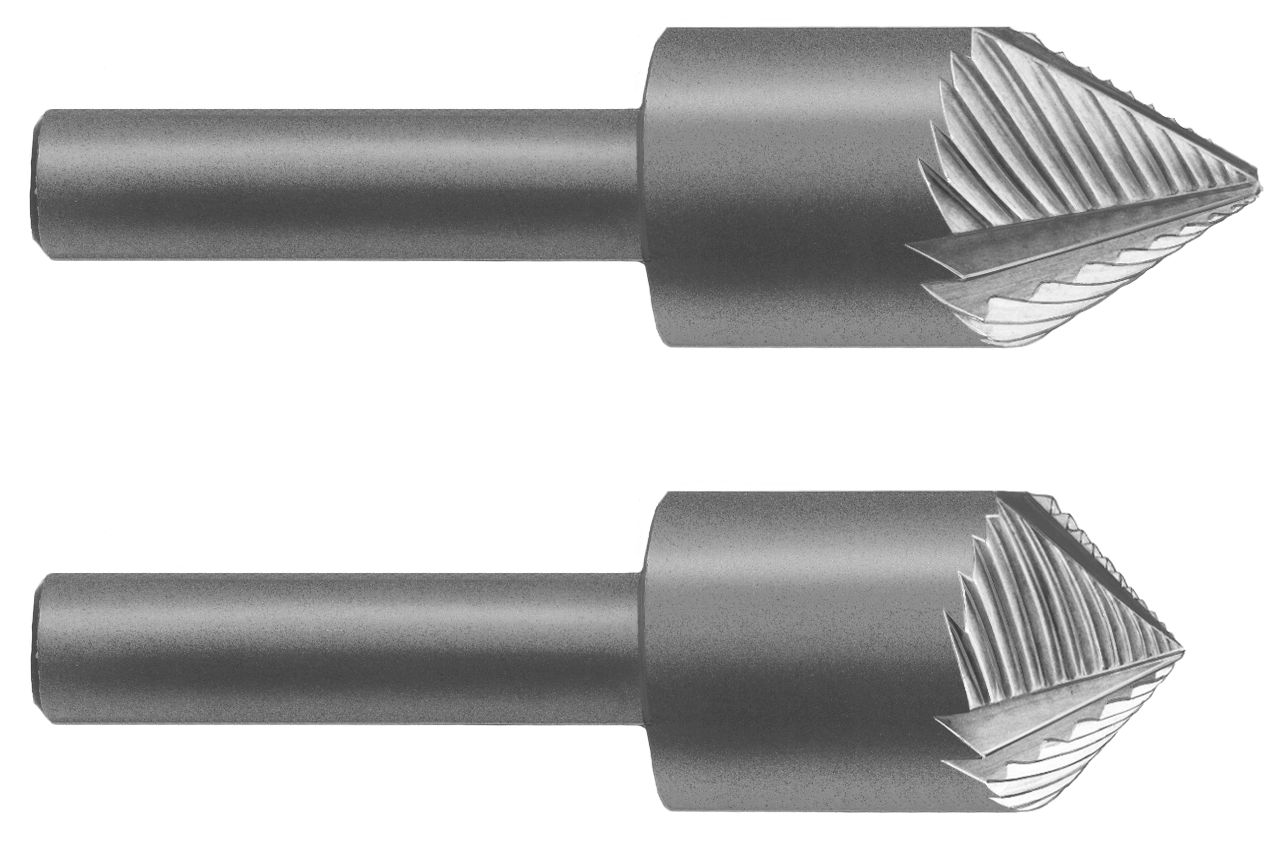

Inside Deburring Cutter diagram

Remove burrs from the inside diameter of tubing. Available with 30° or 45° cutting angle. Solid tools come with 1/4" shanks. Threaded tools are furnished without shanks.

HSS Inside Deburring - 30° C/L (60° Included) - Solid

Tools come with 1/4" shank

Head Dia. Nose Point/Flat OAL Tool Name HSS EDP
1/4"Point2-1/4"ID-1/4-3020770
5/16"1/32"2-1/4"ID-5/16-3020771
3/8"Point2-1/4"ID-3/8-3020772
1/2"9/64"2-1/4"IDS-1/2-3020773
1/2"Point2-1/4"IDL-1/2-3020774
5/8"13/64"2-1/4"IDS-5/8-3020775

HSS Inside Deburring - 30° C/L (60° Included) - Threaded

Furnished without shanks. See catalog pages 78-80 for available shank styles.

Head Dia. Nose Point/Flat OAL Thread Size Tool Name HSS EDP
5/8"3/64"7/8"1/4"-28ID-5/8-3020776
3/4"1/32"1"5/16"-24ID-3/4-3020777
7/8"5/32"1"3/8"-24ID-7/8-3020778
1"9/32"1-1/8"3/8"-24IDS-1-3020779
1"1/8"1-1/8"3/8"-24IDL-1-3020780
1-1/8"1/8"1-1/8"3/8"-24ID-1-1/8-3020781
1-1/4"17/32"1"3/8"-24IDS-1-1/4-3020782
1-1/4"3/32"1-1/4"3/8"-24IDL-1-1/4-3020783
1-1/2"31/64"1-1/8"1/2"-20IDS-1-1/2-3020784
1-1/2"13/64"1-1/2"1/2"-20IDL-1-1/2-3020785
1-3/4"3/4"1-1/4"1/2"-20IDS-1-3/4-3020786
1-3/4"5/16"1-1/2"1/2"-20IDL-1-3/4-3020787
2"63/64"1-1/4"5/8"-18IDS-2-3020788
2"27/32"1-1/4"5/8"-18IDL-2-3020789
2-1/4"1-3/32"1-3/8"3/4"-16IDS-2-1/4-3020790
2-1/4"33/64"1-7/8"3/4"-16IDL-2-1/4-3020791
2-1/2"1-31/64"1-1/4"3/4"-16IDS-2-1/2-3020792
2-1/2"29/32"1-3/4"3/4"-16IDL-2-1/2-3020793
3"1-63/64"1-1/4"1"-14ID-3-3020794

HSS Inside Deburring - 45° C/L (90° Included) - Solid

Furnished without shanks. See catalog pages 78-80 for available shank styles.

Head Dia. Nose Point/Flat OAL Tool Name HSS EDP
1/4"Point2-1/4"ID-1/4-4520805
5/16"1/16"2-1/4"ID-5/16-4520806
3/8"Point2-1/4"ID-3/8-4520807
1/2"1/8"2-1/4"IDS-1/2-4520808
1/2"Point2-1/4"IDL-1/2-4520809
5/8"1/8"2-1/4"IDS-5/8-4520810

HSS Inside Deburring - 45° C/L (90° Included) - Threaded

Furnished without shanks. See catalog pages 78-80 for available shank styles.

Head Dia. Nose Point/Flat OAL Thread Size Tool Name HSS EDP
5/8"1/8"11/16"1/4"-28ID-5/8-4520811
3/4"Point13/16"5/16"-24ID-3/4-4520812
7/8"5/32"1"3/8"-24ID-7/8-4520813
1"1/4"7/8"3/8"-24IDS-1-4520814
1"Point7/8"3/8"-24IDL-1-4520815
1-1/4"3/8"3/4"3/8"-24IDS-1-1/4-4520816
1-1/4"Point1"3/8"-24IDL-1-1/4-4520817
1-1/2"1/2"7/8"1/2"-20IDS-1-1/2-4520818
1-1/2"1/4"1-1/16"1/2"-20IDL-1-1/2-4520819
1-3/4"5/8"7/8"1/2"-20ID-1-3/4-4520820
2"1"1"5/8"-18IDS-2-4520821
2"1/4"1-1/2"5/8"-18IDL-2-4520822
2-1/4"1"1"5/8"-18IDS-2-1/4-4520823
2-1/4"1/4"1-3/8"5/8"-18IDL-2-1/4-4520824
2-1/2"3/4"1-3/8"3/4"-16IDS-2-1/2-4520825
2-1/2"1/4"1-5/8"3/4"-16IDL-2-1/2-4520826
3"3/4"1-3/4"1"-14IDS-3-4520827
3"1/4"1-7/8"1"-14IDL-3-4520828

Carbide Inside Deburring - 30° C/L (with shanks)

Tool Name Carbide EDP
ID-5/16-30-W20620
ID-3/8-30-W20629
ID-1/2-30-W20633
ID-1/2-30-W-3/820634
ID-5/8-30-W20639
ID-5/8-30-W-3/820640
ID-3/4-30-W20644
ID-7/8-30-W20649
ID-1-30-W20650

Carbide Inside Deburring - 45° C/L (with shanks)

Tool Name Carbide EDP
ID-5/16-45-W20680
ID-3/8-45-W20689
ID-1/2-45-W20693
ID-1/2-45-W-3/820694
ID-5/8-45-W20699
ID-5/8-45-W-3/820700
ID-3/4-45-W20704
ID-7/8-45-W20709
ID-1-45-W20710

Outside Deburring Cutters

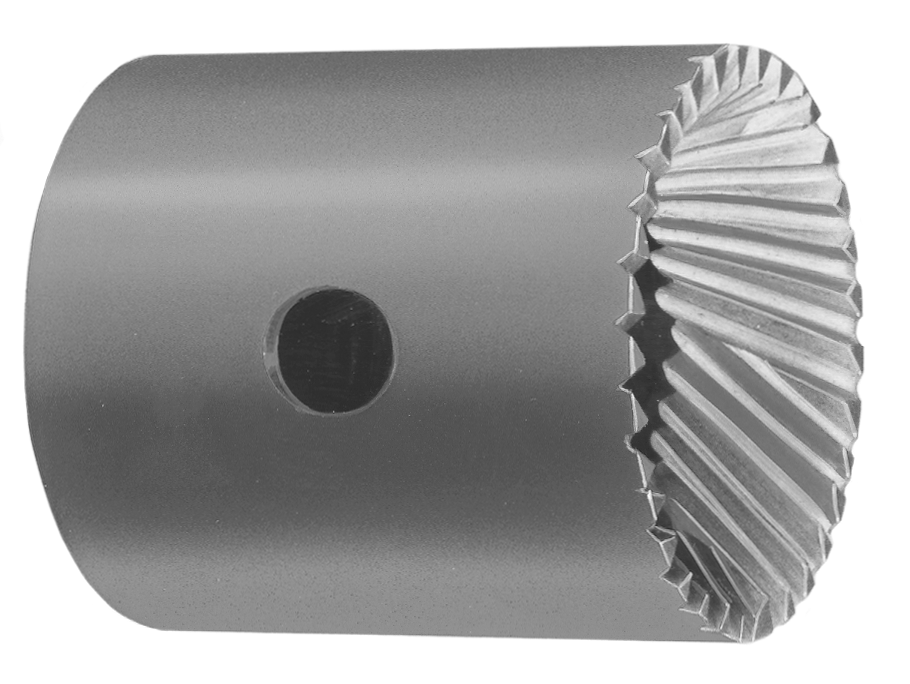

Outside Deburring Cutter diagram

Remove burrs from the outside diameter of tubing. Inverted cone design reaches around the tube O.D. Tools are furnished without shanks. See catalog pages 78-80 for available shank styles.

HSS Outside Deburring - 30° C/L (60° Included)

Max Cutting Dia. Recess Hole Dia. Mouth Dia. Body Dia. Body Length Coolant Hole Thread Size Tool Name HSS EDP
1/8"1/16"5/32"1/2"7/8"-1/4"-280-025430
3/16"5/32"7/32"1/2"7/8"-1/4"-280-125431
1/4"13/64"19/64"1/2"7/8"-1/4"-280-225432
5/16".242"23/64"1/2"7/8"-1/4"-280-325433
3/8"9/32"7/16"5/8"7/8"1/8"1/4"-280-425434
1/2".332"9/16"3/4"1"3/16"3/8"-240-525435
5/8"7/16"11/16"7/8"1"3/16"3/8"-240-625436
3/4"17/32"53/64"1"1"3/16"3/8"-240-725437
1"45/64"1-5/64"1-1/4"1-3/8"1/4"1/2"-200-825438
1-1/4"7/8"1-21/64"1-1/2"1-3/8"1/4"1/2"-200-925439
1-1/2"1-3/64"1-19/32"1-3/4"1-5/8"1/4"5/8"-180-1025440
2"1-13/32"2-7/64"2-3/8"1-7/8"5/16"3/4"-160-1125441
2-1/2"1-3/4"2-39/64"2-7/8"2-1/8"5/16"3/4"-160-1225442
3"2-3/32"3-1/8"3-3/8"2-1/2"7/16"3/4"-160-1325443
4"2-13/16"4-1/8"4-3/8"3"7/16"1"-140-1425444

HSS Outside Deburring - 45° C/L (90° Included)

Max Cutting Dia. Recess Hole Dia. Mouth Dia. Body Dia. Body Length Coolant Hole Thread Size Tool Name HSS EDP
1/8"5/64"3/16"1/2"7/8"-1/4"-280-2025460
3/16"7/64"7/32"1/2"7/8"-1/4"-280-2125461
1/4"9/64"23/64"1/2"7/8"-1/4"-280-2225462
3/8"3/16"7/16"5/8"7/8"1/8"1/4"-280-2325463
1/2"1/4"9/16"3/4"1"3/16"3/8"-240-2425464
3/4"3/8"13/16"1"1"3/16"3/8"-240-2525465
1"1/2"1-5/64"1-1/4"1-3/8"1/4"1/2"-200-2625466
1-1/2"3/4"1-19/32"1-3/4"1-1/2"1/4"5/8"-180-2725467
2"15/16"2-7/64"2-3/8"1-3/4"5/16"3/4"-160-2825468
3"1-7/16"3-1/8"3-1/2"2-1/4"7/16"3/4"-160-2925469
4"1-15/16"4-1/8"4-3/8"2-5/8"7/16"1"-140-3025470

Tube End Deburring Cutters

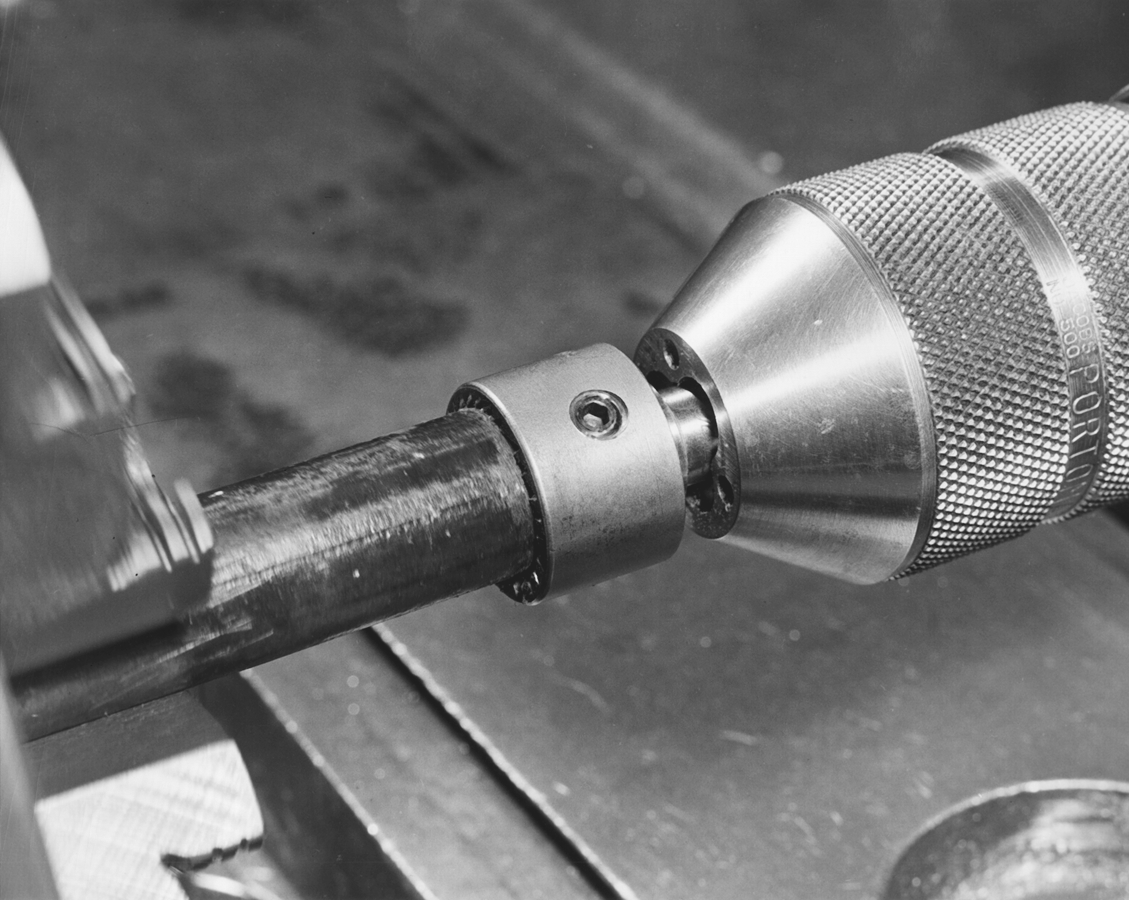

Tube End Deburring Cutter diagram Tube End Deburring in action

Combination tools that deburr both inside and outside diameter simultaneously. The ring (outside member) is adjustable for more or less chamfer on the outside edge, secured by socket screws. Operating speeds: 50-200 RPM.

HSS Tube End Deburring Cutters

Tubing O.D. Tubing I.D. Hole Dia. of Ring Shank Dia. Tool Name HSS EDP
1/8"1/16".093"1/4"A-Tube35060
3/16"1/8".156"1/4"BA-Tube35061
1/4"3/16".218"1/4"CB-Tube35062
5/16"1/4".281"5/16"DC-Tube35063
3/8"5/16".343"3/8"ED-Tube35064
7/16"3/8".406"7/16"FE-Tube35065
1/2"7/16".468"1/2"GF-Tube35066
9/16"1/2".531"1/2"HG-Tube35067
5/8"9/16".595"1/2"IH-Tube35068
3/4"5/8".685"1/2"JI-Tube35069
7/8"3/4".805"1/2"KJ-Tube35070
1"7/8".930"1/2"LK-Tube35071
1-1/8"1"1.063"1/2"-20ML-Tube35072
1-1/4"1-1/8"1.180"1/2"-20NM-Tube35073
1-3/8"1-1/4"1.313"1/2"-20ON-Tube35074
1-1/2"1-3/8"1.430"5/8"-18PO-Tube35075
1-3/4"1-5/8"1.680"5/8"-18RQ-Tube35076
2"1-3/4"1.930"3/4"-16SR-Tube35077
2-1/4"2"2.180"3/4"-16TS-Tube35078

Carbide Tube End Deburring Cutters

Carbide versions available for sizes 1/8" through 1" O.D. Same dimensions as corresponding HSS tools above.

Tubing O.D. Tool Name Carbide EDP
1/8"A-Tube-W35160
3/16"BA-Tube-W35161
1/4"CB-Tube-W35162
5/16"DC-Tube-W35163
3/8"ED-Tube-W35164
7/16"FE-Tube-W35165
1/2"GF-Tube-W35166
9/16"HG-Tube-W35167
5/8"IH-Tube-W35168
3/4"JI-Tube-W35169
7/8"KJ-Tube-W35170
1"LK-Tube-W35171

Tube End Chamfering Mills

Tube End Chamfering Mill diagram

High Speed Steel chamfering mills produce 30° C/L inside diameter and 45° C/L outside diameter chamfers on tube ends. Tools T-36 and larger are furnished without shanks. See catalog pages 78-80 for available shank styles.

HSS Tube End Chamfering Mills - 30° I.D. / 45° O.D.

Tubing O.D. Wall Min. Wall Max. Plug Dia. Shank Dia. Tool Name HSS EDP
3/16".022".045".152"1/4"T-634960
1/4".022".065".228"1/4"T-834961
5/16".022".095".290"1/4"T-1034962
3/8".022".095".353"3/8"T-1234963
7/16".028".095".409"3/8"T-1434964
1/2".028".095".472"3/8"T-1634965
9/16".028".120".534"1/2"T-1834966
5/8".028".120".597"1/2"T-2034967
3/4".028".120".722"1/2"T-2434968
7/8".022".156".847"1/2"T-2834969
1".035".156".965"1/2"T-3234970
1-1/8".035".187"1.090"1/2"-20T-3634971
1-1/4".035".187"1.215"5/8"-18T-4034972
1-5/16".035".187"1.280"5/8"-18T-4234973
1-3/8".035".187"1.340"5/8"-18T-4434974
1-1/2".035".250"1.465"3/4"-16T-4834975
1-5/8".035".250"1.590"3/4"-16T-5234976
1-3/4".035".250"1.715"3/4"-16T-5634977
1-7/8".035".250"1.840"3/4"-16T-6034978
2".035".312"1.965"1"-14T-6434979
2-1/4".058".312"2.195"1"-14T-7234980
2-3/8".065".375"2.310"1"-14T-7634981
2-1/2".065".375"2.435"1"-14T-8034982

Tube End Forming Cutters

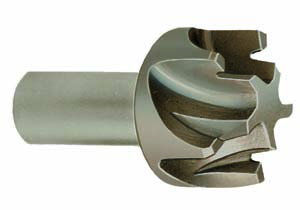

Tube End Forming Cutter diagram

These cutters produce a smooth, round lip on all types of tubing, including steel, copper, aluminum, plastic and other materials. Not recommended for tubing with irregular wall thickness or interrupted cutting. Larger sizes (A-6 x .025 and up) can be supplied in carbide. Speeds of 50-350 RPM are suggested. Order by tool number plus wall thickness (e.g., A-6-.035, A-16-.065).

HSS Tube End Forming Cutters

Tubing O.D. Gauge Wall Thick. Shank Dia. Head Dia. OAL Tool Name HSS EDP
1/8"31.010"1/4"1/4"2-1/4"A-2-01035460
1/8"27.016"1/4"1/4"2-1/4"A-2-01635461
1/8"25.020"1/4"1/4"2-1/4"A-2-02035462
1/8"22.028"1/4"1/4"2-1/4"A-2-02835463
1/8"21.032"1/4"1/4"2-1/4"A-2-03235464
1/8"21.035"1/4"1/4"2-1/4"A-2-03535465
3/16"25.020"3/8"1/2"1-9/16"A-3-02035466
3/16"22.028"3/8"1/2"1-9/16"A-3-02835467
3/16"21.032"3/8"1/2"1-9/16"A-3-03235468
3/16"20.035"3/8"1/2"1-9/16"A-3-03535469
1/4"25.020"3/8"1/2"1-9/16"A-4-02035470
1/4"22.028"3/8"1/2"1-9/16"A-4-02835471
1/4"21.032"3/8"1/2"1-9/16"A-4-03235472
1/4"20.035"3/8"1/2"1-9/16"A-4-03535473
1/4"18.049"3/8"1/2"1-9/16"A-4-04935474
1/4"16.065"3/8"1/2"1-9/16"A-4-06535475
5/16"25.020"3/8"9/16"1-9/16"A-5-02035476
5/16"22.028"3/8"9/16"1-9/16"A-5-02835477
5/16"21.032"3/8"9/16"1-9/16"A-5-03235478
5/16"20.035"3/8"9/16"1-9/16"A-5-03535479
5/16"18.049"3/8"9/16"1-9/16"A-5-04935480
5/16"17.058"3/8"9/16"1-9/16"A-5-05835481
5/16"16.065"3/8"9/16"1-9/16"A-5-06535482
3/8"25.020"1/2"3/4"1-9/16"A-6-02035483
3/8"22.028"1/2"3/4"1-9/16"A-6-02835484
3/8"21.032"1/2"3/4"1-9/16"A-6-03235485
3/8"20.035"1/2"3/4"1-9/16"A-6-03535486
3/8"18.049"1/2"3/4"1-9/16"A-6-04935487
3/8"17.058"1/2"3/4"1-9/16"A-6-05835488
3/8"16.065"1/2"3/4"1-9/16"A-6-06535489
7/16"25.020"1/2"3/4"1-9/16"A-7-02035490
7/16"22.028"1/2"3/4"1-9/16"A-7-02835491
7/16"21.032"1/2"3/4"1-9/16"A-7-03235492
7/16"20.035"1/2"3/4"1-9/16"A-7-03535493
7/16"18.049"1/2"3/4"1-9/16"A-7-04935494
7/16"16.065"1/2"3/4"1-9/16"A-7-06535495
1/2"25.020"1/2"3/4"1-9/16"A-8-02035496
1/2"22.028"1/2"3/4"1-9/16"A-8-02835497
1/2"21.032"1/2"3/4"1-9/16"A-8-03235498
1/2"20.035"1/2"3/4"1-9/16"A-8-03535499
1/2"18.049"1/2"3/4"1-9/16"A-8-04935500
1/2"17.058"1/2"3/4"1-9/16"A-8-05835501
1/2"16.065"1/2"3/4"1-9/16"A-8-06535502
1/2"14.083"1/2"3/4"1-9/16"A-8-08335503
9/16"22.028"1/2"7/8"1-5/8"A-9-02835504
9/16"20.035"1/2"7/8"1-5/8"A-9-03535505
9/16"18.049"1/2"7/8"1-5/8"A-9-04935506
9/16"16.065"1/2"7/8"1-5/8"A-9-06535507
9/16"13.095"1/2"7/8"1-5/8"A-9-09535508
5/8"22.028"1/2"7/8"1-5/8"A-10-02835509
5/8"21.032"1/2"7/8"1-5/8"A-10-03235510
5/8"20.035"1/2"7/8"1-5/8"A-10-03535511
5/8"18.049"1/2"7/8"1-5/8"A-10-04935512
5/8"17.058"1/2"7/8"1-5/8"A-10-05835513
5/8"16.065"1/2"7/8"1-5/8"A-10-06535514
5/8"14.083"1/2"7/8"1-5/8"A-10-08335515
5/8"13.095"1/2"7/8"1-5/8"A-10-09535516
3/4"22.028"1/2"1"1-5/8"A-12-02835517
3/4"21.032"1/2"1"1-5/8"A-12-03235518
3/4"20.035"1/2"1"1-5/8"A-12-03535519
3/4"18.049"1/2"1"1-5/8"A-12-04935520
3/4"17.058"1/2"1"1-5/8"A-12-05835521
3/4"16.065"1/2"1"1-5/8"A-12-06535522
3/4"14.083"1/2"1"1-5/8"A-12-08335523
3/4"13.095"1/2"1"1-5/8"A-12-09535524
3/4"11.120"1/2"1"1-5/8"A-12-12035525
7/8"22.028"1/2"-201-1/4"1-1/8"A-14-02835526
7/8"21.032"1/2"-201-1/4"1-1/8"A-14-03235527
7/8"20.035"1/2"-201-1/4"1-1/8"A-14-03535528
7/8"18.049"1/2"-201-1/4"1-1/8"A-14-04935529
7/8"17.058"1/2"-201-1/4"1-1/8"A-14-05835530
7/8"16.065"1/2"-201-1/4"1-1/8"A-14-06535531
7/8"14.083"1/2"-201-1/4"1-1/8"A-14-08335532
7/8"13.095"1/2"-201-1/4"1-1/8"A-14-09535533
1"22.028"1/2"-201-3/8"1-1/8"A-16-02835534
1"20.035"1/2"-201-3/8"1-1/8"A-16-03535535
1"18.049"1/2"-201-3/8"1-1/8"A-16-04935536
1"17.058"1/2"-201-3/8"1-1/8"A-16-05835537
1"16.065"1/2"-201-3/8"1-1/8"A-16-06535538
1"14.083"1/2"-201-3/8"1-1/8"A-16-08335539
1"13.095"1/2"-201-3/8"1-1/8"A-16-09535540
1"11.120"1/2"-201-3/8"1-1/8"A-16-12035541
1-1/8"22.028"1/2"-201-1/2"1-1/8"A-18-02835542
1-1/8"20.035"1/2"-201-1/2"1-1/8"A-18-03535543
1-1/8"18.049"1/2"-201-1/2"1-1/8"A-18-04935544
1-1/8"17.058"1/2"-201-1/2"1-1/8"A-18-05835545
1-1/8"16.065"1/2"-201-1/2"1-1/8"A-18-06535546
1-1/4"20.035"1/2"-201-1/2"1-1/8"A-20-03535547
1-1/4"18.049"1/2"-201-1/2"1-1/8"A-20-04935548
1-1/4"16.065"1/2"-201-1/2"1-1/8"A-20-06535549
1-1/4"14.083"1/2"-201-1/2"1-1/8"A-20-08335550
1-1/4"11.120"1/2"-201-1/2"1-1/8"A-20-12035551
1-3/8"20.035"1/2"-201-5/8"1-1/8"A-22-03535552
1-3/8"18.049"1/2"-201-5/8"1-1/8"A-22-04935553
1-1/2"18.049"5/8"-182"1-1/4"A-24-04935554
1-1/2"17.058"5/8"-182"1-1/4"A-24-05835555
1-1/2"16.065"5/8"-182"1-1/4"A-24-06535556
1-1/2"14.083"5/8"-182"1-1/4"A-24-08335557
1-1/2"13.095"5/8"-182"1-1/4"A-24-09535558
1-5/8"16.065"5/8"-182"1-1/4"A-26-06535559

Inside Chamfering Mills

Inside Chamfering Mill

Inside Chamfering Mills produce smooth, burrless chamfers on the inside edges of tubes and holes. Suitable for fairly heavy chamfering on most machinable materials. All solid Inside Chamfering Mills have a 1/4" shank diameter.

HSS Inside Chamfering Mills - 30° C/L (60° Included) - Solid

All solid Inside Chamfering Mills have a 1/4" shank diameter.

Head Dia. Nose Point/Flat OAL Tool Name HSS EDP
1/4"Point2-1/4"IC-1/4-3020470
5/16"1/32"2-1/4"IC-5/16-3020471
3/8"Point2-1/4"IC-3/8-3020472
1/2"9/64"2-1/4"ICS-1/2-3020473
1/2"Point2-1/4"ICL-1/2-3020474
5/8"13/64"2-1/4"ICS-5/8-3020475

HSS Inside Chamfering Mills - 30° C/L (60° Included) - Threaded

Furnished without shanks. See catalog pages 78-80 for available shank styles.

Head Dia. Nose Point/Flat OAL Thread Size Tool Name HSS EDP
5/8"3/64"7/8"1/4"-28IC-5/8-3020476
3/4"1/32"1"5/16"-24IC-3/4-3020477
7/8"5/32"1"3/8"-24IC-7/8-3020478
1"9/32"1-1/8"3/8"-24ICS-1-3020479
1"1/8"1-1/8"3/8"-24ICL-1-3020480
1-1/8"1/8"1-1/8"3/8"-24IC-1-1/8-3020481
1-1/4"17/32"1"3/8"-24ICS-1-1/4-3020482
1-1/4"3/32"1-1/4"3/8"-24ICL-1-1/4-3020483
1-1/2"31/64"1-1/8"1/2"-20ICS-1-1/2-3020484
1-1/2"13/64"1-1/2"1/2"-20ICL-1-1/2-3020485
1-3/4"3/4"1-1/4"1/2"-20ICS-1-3/4-3020486
1-3/4"5/16"1-1/2"1/2"-20ICL-1-3/4-3020487
2"63/64"1-1/4"5/8"-18ICS-2-3020488
2"27/32"1-1/4"5/8"-18ICL-2-3020489
2-1/4"1-3/32"1-3/8"3/4"-16ICS-2-1/4-3020490
2-1/4"33/64"1-7/8"3/4"-16ICL-2-1/4-3020491
2-1/2"1-31/64"1-1/4"3/4"-16ICS-2-1/2-3020492
2-1/2"29/32"1-3/4"3/4"-16ICL-2-1/2-3020493
3"1-63/64"1-1/4"1"-14IC-3-3020494

HSS Inside Chamfering Mills - 45° C/L (90° Included) - Solid

All solid Inside Chamfering Mills have a 1/4" shank diameter.

Head Dia. Nose Point/Flat OAL Tool Name HSS EDP
1/4"Point2-1/4"IC-1/4-4520505
5/16"1/16"2-1/4"IC-5/16-4520506
3/8"Point2-1/4"IC-3/8-4520507
1/2"1/8"2-1/4"ICS-1/2-4520508
1/2"Point2-1/4"ICL-1/2-4520509
5/8"1/8"2-1/4"ICS-5/8-4520510

HSS Inside Chamfering Mills - 45° C/L (90° Included) - Threaded

Furnished without shanks. See catalog pages 78-80 for available shank styles.

Head Dia. Nose Point/Flat OAL Thread Size Tool Name HSS EDP
5/8"1/8"11/16"1/4"-28IC-5/8-4520511
3/4"Point13/16"5/16"-24IC-3/4-4520512
7/8"5/32"1"3/8"-24IC-7/8-4520513
1"1/4"7/8"3/8"-24ICS-1-4520514
1"Point7/8"3/8"-24ICL-1-4520515
1-1/4"3/8"3/4"3/8"-24ICS-1-1/4-4520516
1-1/4"Point1"3/8"-24ICL-1-1/4-4520517
1-1/2"1/2"7/8"1/2"-20ICS-1-1/2-4520518
1-1/2"1/4"1-1/16"1/2"-20ICL-1-1/2-4520519
1-3/4"5/8"7/8"1/2"-20IC-1-3/4-4520520
2"1"1"5/8"-18ICS-2-4520521
2"1/4"1-1/2"5/8"-18ICL-2-4520522
2-1/4"1"1"5/8"-18ICS-2-1/4-4520523
2-1/4"1/4"1-3/8"5/8"-18ICL-2-1/4-4520524
2-1/2"3/4"1-3/8"3/4"-16ICS-2-1/2-4520525
2-1/2"1/4"1-5/8"3/4"-16ICL-2-1/2-4520526
3"3/4"1-3/4"1"-14ICS-3-4520527
3"1/4"1-7/8"1"-14ICL-3-4520528

Outside Chamfering Mills

Outside Chamfering Mill

Outside Chamfering Mills create smooth chamfers on the outside edges of tubes, rods, and cylindrical parts. Shear-type cutting teeth for clean, burrless results. Tools furnished without shanks. See catalog pages 78-80 for available shank styles.

HSS Outside Chamfering Mills - 30° C/L (60° Included)

Max Cutting Dia. Recess Hole Dia. Mouth Dia. Body Dia. Body Length Thread Size Tool Name HSS EDP
1/8"1/32"3/16"1/2"1"5/16"-24OC-1/8-3025230
1/4"3/64"5/16"1/2"1"5/16"-24OC-1/4-3025231
1/2"1/8"5/8"7/8"1-5/16"3/8"-24OC-1/2-3025232
3/4"1/4"7/8"1-1/8"1-3/4"1/2"-20OC-3/4-3025233
1"1/4"1-1/8"1-1/2"2"3/4"-16OC-1-3025234
1-3/4"1/2"1-7/8"2-1/4"2-15/16"1"-14OC-1-3/4-3025235
2"7/8"2-1/8"2-1/2"3"1"-14OC-2-3025236
3"1"3-1/4"3-3/4"3-3/4"1-1/4"-12OC-3-3025237

HSS Outside Chamfering Mills - 45° C/L (90° Included)

Max Cutting Dia. Recess Hole Dia. Mouth Dia. Body Dia. Body Length Thread Size Tool Name HSS EDP
1/8"1/32"3/16"1/2"1"5/16"-24OC-1/8-4525250
1/4"3/64"5/16"1/2"1"5/16"-24OC-1/4-4525251
1/2"1/8"5/8"7/8"1-5/16"3/8"-24OC-1/2-4525252
3/4"3/16"7/8"1-1/8"1-5/16"1/2"-20OC-3/4-4525253
1"1/4"1-1/8"1-1/2"1-3/4"3/4"-16OC-1-4525254
1-1/2"3/8"1-5/8"2"1-7/8"3/4"-16OC-1-1/2-4525255
2"7/8"2-1/8"2-1/2"2-1/2"1"-14OC-2-4525256
3"1"3-1/4"3-3/4"2-7/8"1-1/4"-12OC-3-4525257

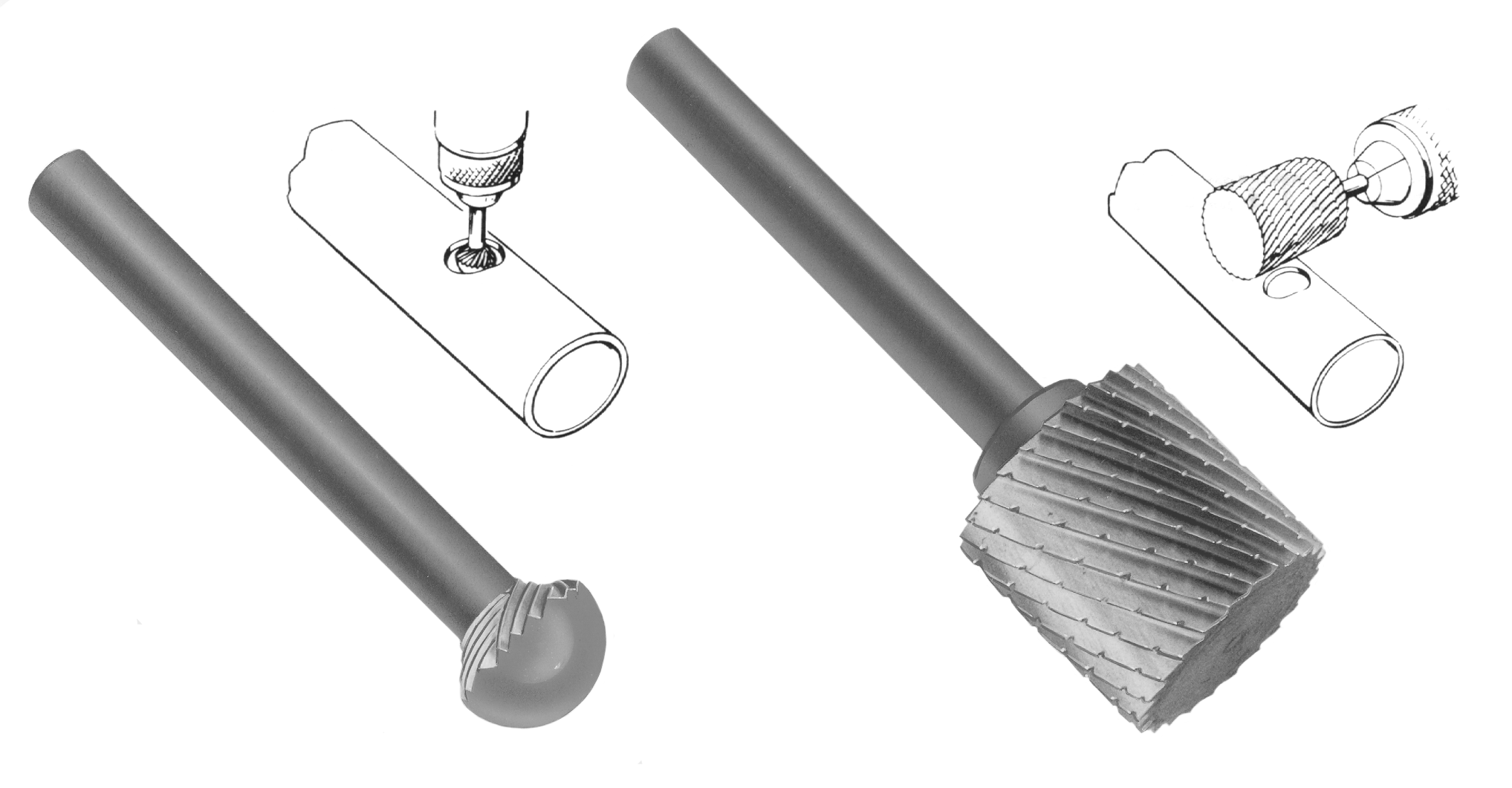

Tube Hole Deburring Tools

Tube Hole Deburring Tool

Inside Hole Deburring Cutters: Place cutter head inside hole, bring back against inner wall edge; follow around inner contour of hole letting the shank act as a guide.

HSS Inside After Drill (IAD) Series

Cutting Dia. Neck Dia. Shank Dia. Tool Name HSS EDP
7/32".109"1/4"7/32-IAD35660
1/4".125"1/4"1/4-IAD35661
5/16".156"1/4"5/16-IAD35662
3/8".187"1/4"3/8-IAD35663
7/16".250"1/4"7/16-IAD35664
1/2".250"1/4"1/2-IAD35665

HSS Long Hole Series (LHS)

Cutting Dia. Cutting Length Shank Dia. Tool Name HSS EDP
5/16"1"1/4"DLA-LHS35666
3/8"1"1/4"ELA-LHS35667
1/2"1/2"1/4"GGA-LHS35668
5/8"1"1/4"ILA-LHS35669
3/4"3/4"1/4"JJA-LHS35670
1"1"1/4"LLA-LHS35671

Rod-End Forming Cutters

Rod End Forming Cutter

Cuts a full radius on end of rod. Designed for use in drill presses, lathes, and similar equipment on most common metals, plastics, etc. Specials may be obtained to produce various radii, straight chamfers, etc.

HSS Rod-End Forming Cutters

For Rod Dia. Radius Formed Body Dia. Shank Dia. OAL Tool Name HSS EDP
1/32"1/64"1/4"1/4"1-1/2"RFC-028630
1/16"1/32"5/16"1/4"1-3/4"RFC-128631
3/32"3/64"3/8"1/4"1-3/4"RFC-1-1/228632
1/8"1/16"1/2"3/8"2-1/8"RFC-228633
3/16"3/32"1/2"3/8"2-1/8"RFC-328634
1/4"1/8"3/4"1/2"2-11/16"RFC-428635
5/16"5/32"3/4"1/2"2-11/16"RFC-528636
3/8"3/16"3/4"1/2"2-11/16"RFC-628637
7/16"7/32"1"1/2"2-13/16"RFC-728638
1/2"1/4"1"1/2"2-13/16"RFC-828639
9/16"9/32"1"1/2"2-13/16"RFC-928640
5/8"5/16"1-1/4"3/4"3-3/8"RFC-1028641
3/4"3/8"1-1/2"3/4"3-1/2"RFC-1228642
7/8"7/16"1-3/4"1"4-1/4"RFC-1428643
1"1/2"2"1"4-3/8"RFC-1628644

Related Products

Midget Mills®

Ground rotary files for general deburring applications.

View Midget Mills
Chatterless Countersinks™

6-flute countersinks for hole chamfering.

View Countersinks
Regrind Service

Professional resharpening for tube deburring tools.

Learn More
