Available Products
All EDP numbers listed below. Request a quote for any EDP, or find a stocking distributor.

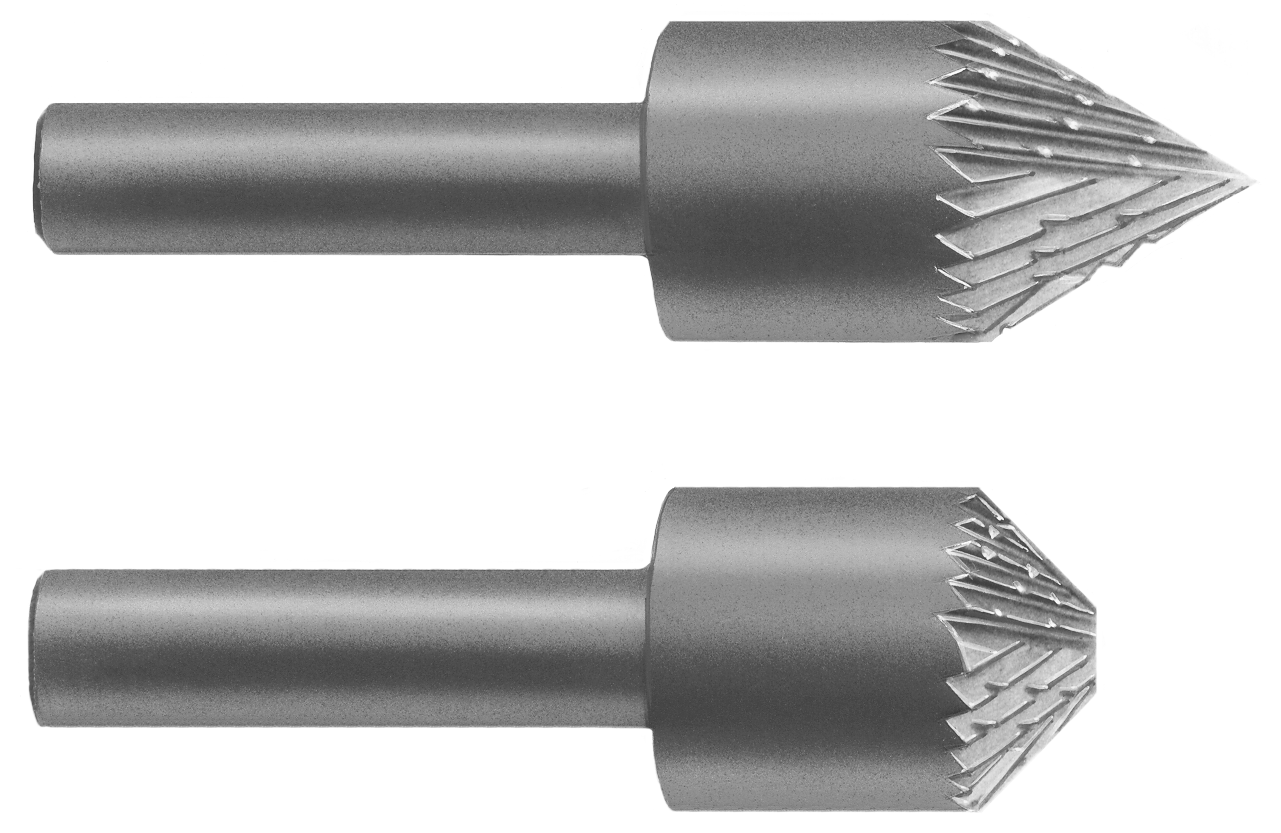

HSS Inside Deburring - 30° C/L (60° Included) - Solid
| Head Dia. |
Nose Point/Flat |
OAL |
Tool Name |
HSS EDP |
| 1/4" | Point | 2-1/4" | ID-1/4-30 | 20770 |
| 5/16" | 1/32" | 2-1/4" | ID-5/16-30 | 20771 |
| 3/8" | Point | 2-1/4" | ID-3/8-30 | 20772 |
| 1/2" | 9/64" | 2-1/4" | IDS-1/2-30 | 20773 |
| 1/2" | Point | 2-1/4" | IDL-1/2-30 | 20774 |
| 5/8" | 13/64" | 2-1/4" | IDS-5/8-30 | 20775 |
HSS Inside Deburring - 30° C/L (60° Included) - Threaded
| Head Dia. |
Nose Point/Flat |
OAL |
Thread Size |
Tool Name |
HSS EDP |
| 5/8" | 3/64" | 7/8" | 1/4"-28 | ID-5/8-30 | 20776 |
| 3/4" | 1/32" | 1" | 5/16"-24 | ID-3/4-30 | 20777 |
| 7/8" | 5/32" | 1" | 3/8"-24 | ID-7/8-30 | 20778 |
| 1" | 9/32" | 1-1/8" | 3/8"-24 | IDS-1-30 | 20779 |
| 1" | 1/8" | 1-1/8" | 3/8"-24 | IDL-1-30 | 20780 |
| 1-1/8" | 1/8" | 1-1/8" | 3/8"-24 | ID-1-1/8-30 | 20781 |
| 1-1/4" | 17/32" | 1" | 3/8"-24 | IDS-1-1/4-30 | 20782 |
| 1-1/4" | 3/32" | 1-1/4" | 3/8"-24 | IDL-1-1/4-30 | 20783 |
| 1-1/2" | 31/64" | 1-1/8" | 1/2"-20 | IDS-1-1/2-30 | 20784 |
| 1-1/2" | 13/64" | 1-1/2" | 1/2"-20 | IDL-1-1/2-30 | 20785 |
| 1-3/4" | 3/4" | 1-1/4" | 1/2"-20 | IDS-1-3/4-30 | 20786 |
| 1-3/4" | 5/16" | 1-1/2" | 1/2"-20 | IDL-1-3/4-30 | 20787 |
| 2" | 63/64" | 1-1/4" | 5/8"-18 | IDS-2-30 | 20788 |
| 2" | 27/32" | 1-1/4" | 5/8"-18 | IDL-2-30 | 20789 |
| 2-1/4" | 1-3/32" | 1-3/8" | 3/4"-16 | IDS-2-1/4-30 | 20790 |
| 2-1/4" | 33/64" | 1-7/8" | 3/4"-16 | IDL-2-1/4-30 | 20791 |
| 2-1/2" | 1-31/64" | 1-1/4" | 3/4"-16 | IDS-2-1/2-30 | 20792 |
| 2-1/2" | 29/32" | 1-3/4" | 3/4"-16 | IDL-2-1/2-30 | 20793 |
| 3" | 1-63/64" | 1-1/4" | 1"-14 | ID-3-30 | 20794 |
HSS Inside Deburring - 45° C/L (90° Included) - Solid
| Head Dia. |
Nose Point/Flat |
OAL |
Tool Name |
HSS EDP |
| 1/4" | Point | 2-1/4" | ID-1/4-45 | 20805 |
| 5/16" | 1/16" | 2-1/4" | ID-5/16-45 | 20806 |
| 3/8" | Point | 2-1/4" | ID-3/8-45 | 20807 |
| 1/2" | 1/8" | 2-1/4" | IDS-1/2-45 | 20808 |
| 1/2" | Point | 2-1/4" | IDL-1/2-45 | 20809 |
| 5/8" | 1/8" | 2-1/4" | IDS-5/8-45 | 20810 |
HSS Inside Deburring - 45° C/L (90° Included) - Threaded
| Head Dia. |
Nose Point/Flat |
OAL |
Thread Size |
Tool Name |
HSS EDP |
| 5/8" | 1/8" | 11/16" | 1/4"-28 | ID-5/8-45 | 20811 |
| 3/4" | Point | 13/16" | 5/16"-24 | ID-3/4-45 | 20812 |
| 7/8" | 5/32" | 1" | 3/8"-24 | ID-7/8-45 | 20813 |
| 1" | 1/4" | 7/8" | 3/8"-24 | IDS-1-45 | 20814 |
| 1" | Point | 7/8" | 3/8"-24 | IDL-1-45 | 20815 |
| 1-1/4" | 3/8" | 3/4" | 3/8"-24 | IDS-1-1/4-45 | 20816 |
| 1-1/4" | Point | 1" | 3/8"-24 | IDL-1-1/4-45 | 20817 |
| 1-1/2" | 1/2" | 7/8" | 1/2"-20 | IDS-1-1/2-45 | 20818 |
| 1-1/2" | 1/4" | 1-1/16" | 1/2"-20 | IDL-1-1/2-45 | 20819 |
| 1-3/4" | 5/8" | 7/8" | 1/2"-20 | ID-1-3/4-45 | 20820 |
| 2" | 1" | 1" | 5/8"-18 | IDS-2-45 | 20821 |
| 2" | 1/4" | 1-1/2" | 5/8"-18 | IDL-2-45 | 20822 |
| 2-1/4" | 1" | 1" | 5/8"-18 | IDS-2-1/4-45 | 20823 |
| 2-1/4" | 1/4" | 1-3/8" | 5/8"-18 | IDL-2-1/4-45 | 20824 |
| 2-1/2" | 3/4" | 1-3/8" | 3/4"-16 | IDS-2-1/2-45 | 20825 |
| 2-1/2" | 1/4" | 1-5/8" | 3/4"-16 | IDL-2-1/2-45 | 20826 |
| 3" | 3/4" | 1-3/4" | 1"-14 | IDS-3-45 | 20827 |
| 3" | 1/4" | 1-7/8" | 1"-14 | IDL-3-45 | 20828 |
Carbide Inside Deburring - 30° C/L (60° Included)
| Head Dia. |
Shank Dia. |
Overall Length |
Tool Name |
Carbide EDP |
| 3/32" | 3/32" | 1-1/2" | 3Z-W-DE | 20620 |
| 1/8" | 1/8" | 1-1/2" | 4Z-W-DE | 22250 |
| 3/16" | 3/16" | 2" | 6Z-W-DE | 20622 |
| 1/4" | 1/4" | 2" | 8Z-W-DE | 22411 |
| 5/16" | 1/4" | 2-1/4" | ID-5/16-30-W | 20628 |
| 3/8" | 1/4" | 2-1/4" | ID-3/8-30-W | 20629 |
| 1/2" | 1/4" | 2-1/4" | ID-1/2-30-W | 20633 |
| 1/2" | 3/8" | 2-1/8" | ID-1/2-30-W-3/8 | 20634 |
| 5/8" | 1/4" | 2-3/8" | ID-5/8-30-W | 20639 |
| 5/8" | 3/8" | 2-3/8" | ID-5/8-30-W-3/8 | 20640 |
| 3/4" | 1/2" | 2-11/16" | ID-3/4-30-W | 20644 |
| 7/8" | 1/2" | 2-13/16" | ID-7/8-30-W | 20649 |
| 1" | 1/2" | 2-13/16" | ID-1-30-W | 20650 |
Carbide Inside Deburring - 45° C/L (90° Included)
| Head Dia. |
Shank Dia. |
Overall Length |
Tool Name |
Carbide EDP |
| 3/32" | 3/32" | 1-1/2" | 3Y-W-DE | 20680 |
| 1/8" | 1/8" | 1-1/2" | 4Y-W-DE | 22249 |
| 3/16" | 3/16" | 2" | 6Y-W-DE | 20682 |
| 1/4" | 1/4" | 2" | 8Y-W-DE | 22412 |
| 5/16" | 1/4" | 2-1/4" | ID-5/16-45-W | 20688 |
| 3/8" | 1/4" | 2-1/4" | ID-3/8-45-W | 20689 |
| 1/2" | 1/4" | 2-1/4" | ID-1/2-45-W | 20693 |
| 1/2" | 3/8" | 2-1/8" | ID-1/2-45-W-3/8 | 20694 |
| 5/8" | 1/4" | 2-3/8" | ID-5/8-45-W | 20699 |
| 5/8" | 3/8" | 2-3/8" | ID-5/8-45-W-3/8 | 20700 |
| 3/4" | 1/2" | 2-11/16" | ID-3/4-45-W | 20704 |
| 7/8" | 1/2" | 2-13/16" | ID-7/8-45-W | 20709 |
| 1" | 1/2" | 2-13/16" | ID-1-45-W | 20710 |
