Extra Length Lab Mills™ (Jordan Day™ Surgical Mills)
19 products available - Order by EDP Number
Request a Quote Find a Distributor Specialty Tools Catalog (PDF)19 products available - Order by EDP Number

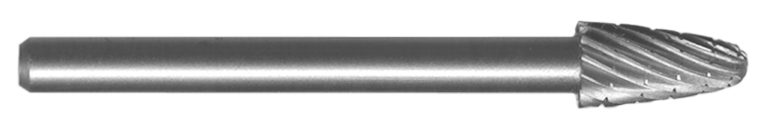

Request a Quote Find a Distributor Specialty Tools Catalog (PDF)High speed steel Extra Length Lab Mills™, also known as Surgical Mills or Jordan Day™ Mills. 3/32" shank diameter and 2-1/2" overall length, ideal for small and micro part deburring and finishing. Made as Cutting, Penetrating and Polishing Mills.
Specialized cutting tools for unique applications.
All tools are ordered by their EDP Number (Electronic Data Processing). Find your tool in the table below and use the EDP number when placing orders with your distributor.
All EDP numbers listed below. Request a quote for any EDP, or find a stocking distributor.
| Head Dia. | MM | Teeth | Type | Tool Name | EDP |
|---|---|---|---|---|---|
| .062" | 1.6 | 6 | Cutting Mills | JD-0 | 34310 |
| .093" | 2.4 | 6 | Cutting Mills | JD-1 | 34311 |
| .125" | 3.2 | 6 | Cutting Mills | JD-2 | 34312 |
| .156" | 4.0 | 6 | Cutting Mills | JD-3 | 34313 |
| .187" | 4.7 | 6 | Cutting Mills | JD-4 | 34314 |
| .156" | 4.0 | 8 | Cutting Mills | JD-5 | 34315 |
| .187" | 4.7 | 8 | Cutting Mills | JD-6 | 34316 |
| .218" | 5.5 | 8 | Cutting Mills | JD-7 | 34317 |
| .250" | 6.4 | 8 | Cutting Mills | JD-15 | 34318 |
| .281" | 7.1 | 8 | Cutting Mills | JD-16 | 34319 |
| .125" | 3.2 | 8 | Penetrating Mills | JD-8 | 34320 |
| .078" | 2.0 | 2 | Penetrating Mills | JD-25 | 34321 |
| .039" | 1.0 | 12 | Polishing Mills | JD-9 | 34322 |
| .059" | 1.5 | 16 | Polishing Mills | JD-10 | 34323 |
| .078" | 2.0 | 18 | Polishing Mills | JD-11 | 34324 |
| .090" | 2.3 | 20 | Polishing Mills | JD-12 | 34325 |
| .118" | 3.0 | 20 | Polishing Mills | JD-13 | 34326 |
| .156" | 4.0 | 25 | Polishing Mills | JD-14 | 34327 |
| Tool Name | EDP |
|---|---|
| Set No. 80 | 29680 |
